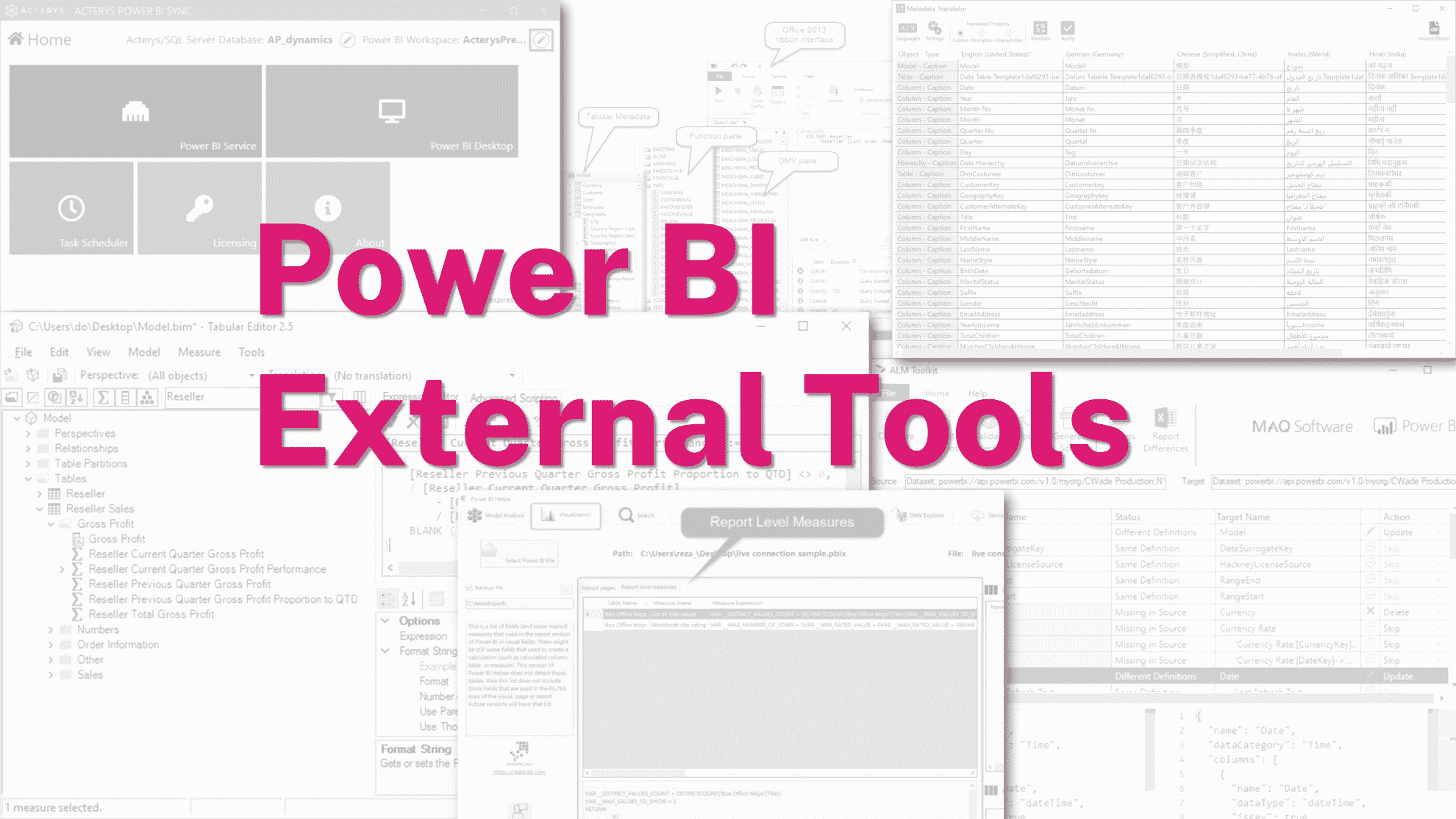

Power BI External Tools for Desktop: An Overview

This post contains an overview of Power BI External tools that add additional functionality to Power BI Desktop:

Power BI External Tool Name	Developer	Key Features	Licensing Model	Download
Acterys Power BI Sync	Acterys	Plan and write back enable Power BI models Synchronization with SQL Server	Commercial	Power BI Sync
Acterys Modeller	Acterys	Automated data warehouse, Power BI model and reports generation for ERP and SaaS solutions Creation and editing of data warehouse models	Commercial	Acterys Modeller
ALM Toolkit	Christian Wade	Application Lifecycle Managment for SSAS models	Free	ALM toolkit
Business Ops	PowerBi.tooltips	Addition of external tools	Free	Business Ops
DAX Studio	Darren Gosbell	Executing and analyzing DAX queries against Microsoft Tabular models	Free	DAX Studio
Metadata Translator	Various	Metadata management	Free	Meta Data Translator
Power BI Helper	Radacad, Reza Rad	Various tools to improve development process	Free	Power BI Helper
Power BI Side Tools	Didier Terrien	DAX Debugger Export to Excel Transfer DAX/M	Free	Power BI Sidetools
Tabular Editor	Daniel Otykier / Kapacity	Tabular model development Scripting Engine	Free/Commercial Version 3	Tabular Editor

Want to add your external Power BI tool to our list? Reply to us in the comment below or simply contact us.

What are Power BI External Tools for Desktop?

The Power BI External Tools are third-party tools that are registered and available on the Power BI Desktop. They can be launched from the External Tools ribbon available on Power BI Desktop. When a user selects a Power BI external tool, their information including the name and port number internal data model engine instance are passed to the tool.

List of Power BI Desktop External Tools

Here is a list of the Power BI Desktop external tools that can be accessed through the tools ribbon.

Acterys Modeller

The Acterys Modeller is cloud based service (with on-premise installation option) that allows enables business users to automatically create optimal analysis models (star schema data warehouse) from a variety to ERP. accounting and SaaS systems. The created models are write and planning enabled and can be edited and extended as needed by business users e.g. for adding new products/attributes, account mappings, new scenarios etc. With the new Instant Link technology users can also easily add existing data warehouse components that can then be edited in the Modeller without affecting the source tables.

Acterys Power BI Sync

Acterys Power BI Sync a Windows application (and soon also available as a cloud service in the Acterys Modeller) that is integrated as an external Power BI tool. Power BI Sync enables you to synchronize Power BI tables including calculated columns etc. with a SQL Server database either as standard staging tables or as a write-back and planning enabled Acterys data warehouse star schema.

Features of Acterys Power BI Sync:

• With the later format users can add unparalleled planning features from top down data entry, driver based planning and a variety of corporate performance management features (FX handling statutory consolidation, etc.) to any data model added in Power BI with 600+ connectors.
• It also enables users to easily edit these tables in the web browser (Acterys Modeller), in Power BI (8 AppSource listed Power BI custom visuals) as well as in an Excel add-in that again supports all Acterys editing and planning features.

Download a trial version of Acterys Power BI Sync here: Acterys Power BI Sync

ALM Toolkit

The ALM Toolkit is a free and open-source tool to manage Microsoft Power BI datasets: Database compare, Code merging, Easy deployment, Source-control integration, Reuse definitions, Self-service to corporate BI.
It is based on the source code of BISM Normalizer, which provides similar features for Tabular models.

Download a the free ALM toolkit for Power BI Desktop version here: Home Page – ALM Toolkit (alm-toolkit.com)

Business Ops

Business Ops tool helps you to make the addition of external tools in Power BI Desktop easier. Download this installer and you can add a variety of External Tools directly into Power BI Desktop: Business Ops – (powerbi.tips)

DAX Studio

• DAX Studio enables the execution and analysis of  DAX queries against Microsoft Tabular (Analysis Service Tabular /Power BI) models. It includes:
• Automated DAX formatting improvements and highlighting
•  Analysis of server timings
• Swapping the delimiter style

Kapacity Tabular Editor

Tabular Editor provides an intuitive hierarchical view of every object in a tabular model (Analysis Service Tabular and Power BI). It enabkles editing Columns, Measures and Hierarchies are arranged in Display Folders. Users can edit properties of one or more objects, by (multi)selecting them in the tree. The new version 3 provides a DAX Editor with syntax highlighting that lets you easily edit the expressions of Measures, Calculated Columns and Calculated Tables.

Metadata Translator

Metadata Translator helps to streamline the localization of Power BI data models. The tool can automatically translate the captions, descriptions, and display folder names of tables, columns, measures, and hierarchies by using the machine translation technology of Azure Cognitive Services. It also lets you export and import translations via Comma Separated Values (.csv) files for convenient bulk editing in Excel or a localization tool.

You can download the free open source version of Metadata Translator here: Analysis-Services/MetadataTranslator at master · microsoft/Analysis-Services · GitHub

Power BI Helper

The Power BI Helper includes a set of features to improve the development process in Power BI Desktop:

• Detecting the storage mode of tables (DirectQuery, Dual, Import)
• Detecting the connection mode of the file (Import, DirectQuery, Live Connection, Composite/Mixed)
• Report level measures
• Compare two files based on their report level measures
• Analyzing the visualization just by selecting the model

The free version of Power BI Helper can be downloaded here: Power BI Helper – RADACAD

Power BI Sidetools

Power BI Sidetools is a free Power BI external tool intended to increase productivity during reports development in Power BI desktop. You can download Sidetools from here: Power BI Sidetools

This is the complete list of External tools available on Power BI desktop that can help users easily plan, forecast, manage their data.
